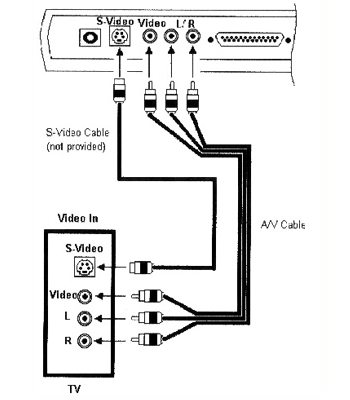

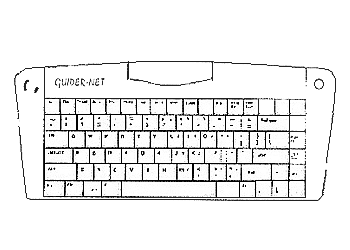

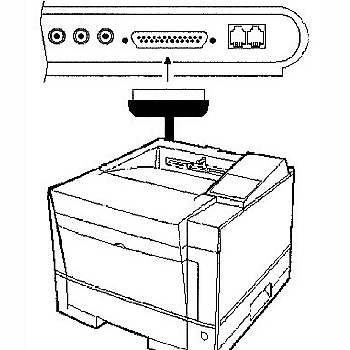

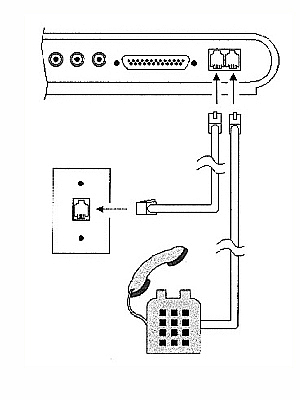

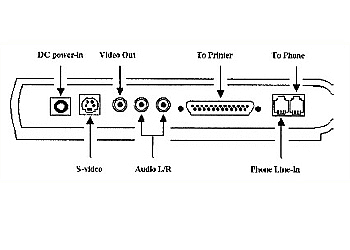

INSTALLATION THE BACK PANEL OF THE SET-TOP BOX IS SHOWN AS FOLLOWS: SET-TOP UNIT 1.CONNECT VIDEO OR S-VIDEO. 2.CONNECT PHONE LINE. 3.INSTALL BATTERIES IN WIRELESS KEYBOARD. 4.INSTALL PRINTER, IF ANY. 5.CONNECT AC/DC ADAPTER TO ANY 220 VOLT WALL OUTLET, THEN PLUG THE OTHER END TO THE DC POWER-IN CONNECTOR ON THE BACK OF THE BOX. VIDEO CONNECTION PLUG A-V CABLE TO THE A-V CONNECTORS ON THE BACK OF THE BOX, THE YELLOW (VIDEO) CONNECTOR SHOULD BE PLUGGED TO THE CORRESPONDING YELLOW CONNECTOR ON THE BACK OF THE BOX.THE AUDIO (RED AND WHITE)CONNECTORS SHOULD BE PLUGGED INTO THE CORRESPONDING RED AND WHITE CONNECTORS ON THE BACK OF THE BOX.THE CONNECTORS ON THE OTHER END OF THE CABLE SHOULD BE PLUGGED INTO THE CORRESPONDING COLORED CONNECTORS TO THE TV.     PHONE LINE PLUG TELEPHONE CABLE TO LINE JACK ON THE BACK OF THE BOX AND PLUG THE OTHER END TO ANY WALL PHONE JACK. PLUG TELEPHONE IN THE OTHER JACK IF DESIRED.     WI1RELESS KEYBOARD 1.OPEN THE BATTERY COVER ON THE BACK SIDE OF THE KEYBOARD AND INSERT TWO AA BATTERIES.2.THE POINTING DEVICE ON THE UPPER RIGHT CORNER CONTOLS THE CURSER MOVEMENT ON THE TV SCREEN. 3.THE LARGER (LEFT) BUTON ON THE UPPER LEFT CORNER ON THE KEYBOARD ACTS AS THE CONFIRMATION BUTTON. PRINTER PORT TO MAKE THE CONNECTION PLUG THE CABLE CONNECTOR INTO THE PARALLEL INTERFACE PORT ON THE BACK OF THE PRINTER. SECURE THE CONNECTOR WITH WIRE CLIPS. PLUG THE OTHER CONNECTOR INTO THE GUIDER-NET PRINTER PORT. FIRST BOOT 1.SWITCH VIDEO MODE ON YOUR TV TO VIDEO 1 OR 2(DEPENDS UPON WHICH VIDEO CHANNEL THAT YOU ARE USING)   2.MAKE SURE ALL ACBLES ARE PROPERLY CONNECTED PRESS THE POWER BUTTON ONCE,THE INDICATOR LIGHT SHOULD COME ON. BEFORE CONNECTING BEFORE SETTING UP YOUR OWN ISP ACCOUNT THAT ALLOWS YOU INTERNET ACCESS, STEP 1,2&3 SHOULD BE COMPLETED. 1.SET UP A SUBSCRIPTION WITH AN ISP THAT OFFERS LOCAL ACCESS. 2.DETERMINE IF THE ISP WILL SUPPORT THE TCP/IP PROTOCOLS. ROUGHLY 99% OF ALL ISPS ARE ABLE TO SUUPORT THE TCP/IP PROTOCOLS.THESE ARE FOUR QUESTIONS YOU NEED TO ASK AN ISP. IF THEY ANSWER YES TO ALL 2 QUESTIONS,THEY SUPPORT THE GUIDER-NET BOX. *IS THE SPEED OF THE LOCAL ACCESS PHONE NUMBER AT LEAST 28.8K BAUD? *DO THEY HAVE LOCAL ACCESS PHONE NUMBERS FOR YOUR CALLING AREA? 3.WHEN YOU SET UP AN ACCOUNT WITH AN ISP, YOU WILL NEED TO GET THE FOLLOWING INFORMATION TO ACCESS THE NET. *YOUR USERNAME (THIS MAY BE CASE SENSITIVE) *YOUR PASSWORD (THIS IS MOST OFTEN CASE-SENSITIVE) *A LOCAL DAIL-UP ACCESS PHONE NUMBER *A LOCAL BACKUP DIAL-UP ACCESS NUMBER. YOU WILL NEED THIS NUMBER IN CASE THE FIRST NUMBER IS BUSY. 4.WAIT 3 SECONDS FOR THE GUIDER-NET BOX TO BOOT UP. THE START PAGE SHOULD BE SHOWN ON THE TV SCREEN. CONNECTION SETTINGS 1.ON THE START PAGE, MOVE THE CURSOR TO SETTINGS AND CLICK ONCE. 2.A NEW WINDOW SHOULD SHOW, MOVE CURSER TO CONNECTION SETTINGS AND CLICK ONCE. 3.A NEW WINDOW SHOULD SHOW. ON THE LEFT SIDE OF THE SCREEN,THERE SHOULD BE 3 SELECTIONS,DONE, CANCEL AND HELP. IN THE CENTER THERE ARE FOUR SMALLER TEXT WINDOWS THAT ALLOW YOU TO ENTER THE NECESSARY INFO FOR DIAL-UP,USERNAME,PASSWORD,PHONE NUMBER, AND PROXY. 4.MOVE CURSER TO ISP USERNAME AND CLICK ONCE. A SMALL VERTICAL TEXT CURSER SHOULD BE FLASHING, THEN USE WIRELESS KEYBOARD TO ENTER YOUR ACCOUNT OR USER NAME (REMEMVER, THIS IS CASE SENSITIVE) 5.MOVE CURSER TO ISP PASSWORD AND CLICK ONCE.USE WIRELESS KEYBOARD TO ENTER PASSWORD SUPPLIED BY THE ISP. 6.MOVE CURSOR TO ISP PHONE NUMBER, ENTER TELEPHONE NUMBER IN THE FOLLOWING FORMAT XXXXXXX.IF YOU DO NOT HAVE A LOCAL DIAL-UP NUMBER AND NEED TO DIAL A NUMBER OUTSIDE OF YOUR AREA CODE, PLEASE ENTER THE NUMBER IN THE FOLLOWING FORMAT,1XXXXXXXXXX. IF YOU NEED TO DIAL OR A 9 OR 0 TO GET AN OUTSIDE LINE,PLEASE ENTER THE NUMBER IN THE FOLLOWING FORMAT,9,XXXXXXX OR 0,XXXXXXX.               7.IGNORE PROXY. 8.MOVE CURSER TO DONE ON THE LEFT SIDE AND CLICK. THIS SHOULD TAKE YOU BACK TO THE START PAGE. For More Assistante Contact Tel No. 00632-8312322
